Race Dashboard

The kart's live dashboard — a landscape "race skin" that a driver or engineer opens on a phone or laptop to watch telemetry and drive mission control. This page documents what each screen shows and where every value comes from, so another team can rebuild it.

What it is

The dashboard is not a native GUI. It is a ROS 2 node (kb_dashboard, an ament_python package) that serves a single-page web app to any browser on the network. There is no framework and no build step: the whole UI is vanilla JavaScript with HTML <canvas>/SVG widgets, served by a hand-rolled asyncio HTTP + WebSocket server.

Tech stack

  • Node: kb_dashboard — subscribes to ROS topics, writes a thread-safe DashboardState, and republishes it to browsers.
  • Transport: one asyncio server (server.py) speaks both plain HTTP (serves index.html) and WebSocket (telemetry + commands). broadcast_loop() pushes a JSON snapshot to every connected browser at 10 Hz; the HUD camera image is streamed separately as binary JPEG WebSocket frames at ~3.3 Hz (every 3rd tick, JPEG quality 60). Browser → kart commands travel back over the same WebSocket.
  • UI: index.html holds all skins inline. The dashboard is mounted landscape on a phone holder in the kart; the race skin is the default (stored in localStorage).

The 10 Hz broadcast rate is deliberate — human live-monitoring does not need more, and fast transients (impact/vibration spikes) are meant to be captured in a source-rate log on the Orin, not the live feed.

How to run and access

ros2 launch kart_bringup dashboard.launch.py

This binds port 80 so URLs need no port suffix. A non-root process binding a port below 1024 requires net.ipv4.ip_unprivileged_port_start=80 (one sysctl line). In production the node is not launched on its own — it starts as part of kart-brain.service, which runs ros2 launch kart_bringup launch.py.

Access

  • On the kart Wi-Fi access point: http://10.42.0.1
  • From anywhere over the internet (via cloudflared tunnel): kart.rubenayla.xyz

The topbar ⓘ button opens a popover fed by the node's /network-info endpoint, which lists the Orin's live LAN addresses so the local URL stays correct even if the address changes.

Demo mode

Append ?demo=1 to the URL (e.g. http://10.42.0.1/?demo=1) to drive the entire UI from a simulated random-walk data source — needles move, cones drift past, the battery sweeps through its colour zones — with no ROS graph and no hardware. This is the standard way to work on the dashboard away from the kart.

Screenshots below were captured in demo mode

Every value shown in the screenshots on this page is synthetic, generated by the ?demo=1 simulator. They illustrate layout and behaviour, not real kart readings.

Layout

The race skin is landscape only and never scrolls. It is one full-screen stage with five swipeable pages, selected by a bottom tab bar or a horizontal swipe:

Telemetry · Mission · Vision · System · Battery

A portrait "rotate the phone — landscape only" guard covers the stage when the device is held upright (the topbar stays visible so you can still switch skins).

Only the race skin is documented

index.html defines six skins (race, legacy, kitt, tesla, hud, artemis). The other five are portrait layouts still present in the code; only the landscape race skin — the default, and the one being actively maintained — is covered here.

Global topbar (all pages)

Persistent across all five pages:

Element Shows
Brand "Ü MOTORSPORT / FORMULA STUDENT · DV" with the team logo
Live pulse dot WebSocket connection health (pulses red while connected)
Skin selector Dropdown to switch UI skin
ⓘ network info Popover with the Orin's live LAN IPs, from the /network-info HTTP endpoint
Power off Powers off the Orin computer (double-confirmed; not the kart safety shutdown / EBS — Emergency Braking System)

Telemetry

The driving cluster: speed, steering, and four mini-instruments.

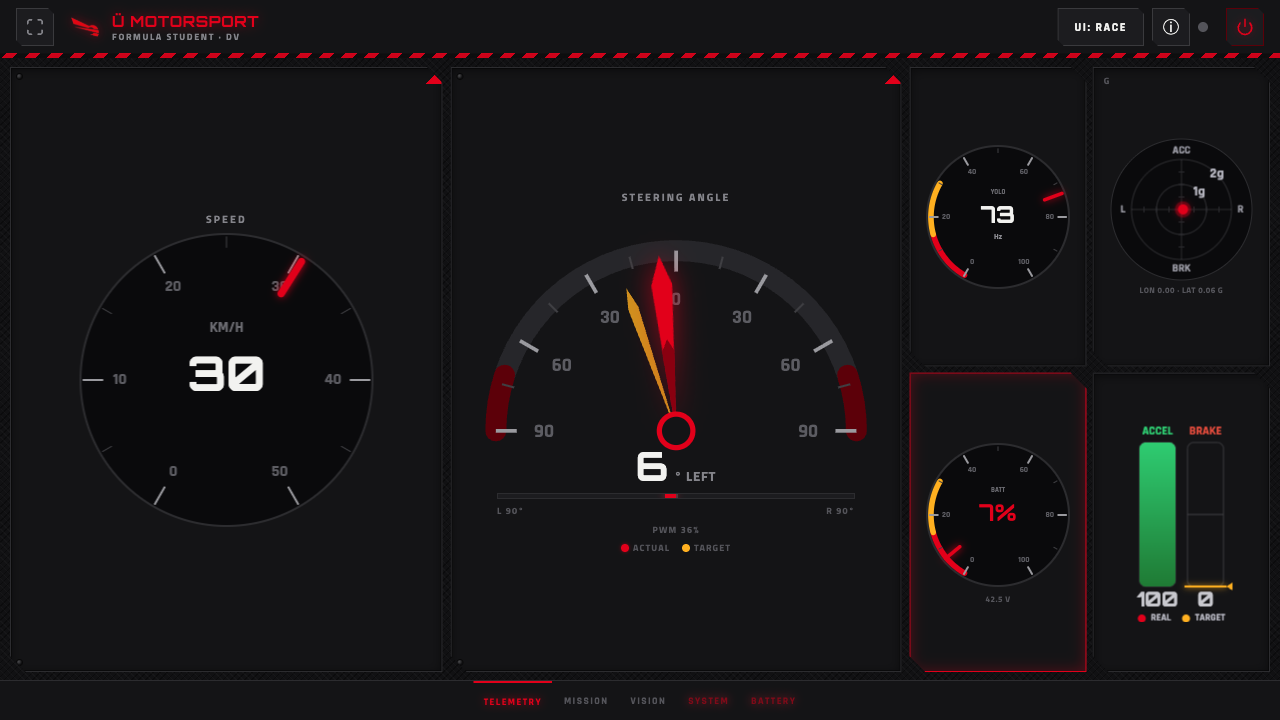

Telemetry page — speed dial, steering gauge, and mini-instruments

Demo-mode data.

Widget Shows Data field → ROS topic
Speed dial Speed in km/h esp32_speed ← /esp32/speed (Frame, decode_speed) or /kart/speed (Float32, ZED VIO — visual-inertial odometry) — both write the same field
Steering gauge Actual angle (red needle, ±90°), commanded target (amber ghost needle), and PWM % below actual esp32_steering_rad ← /esp32/steering; target orin_cmd_steering_rad ← /orin/steering; PWM esp32_steering_pwm ← /esp32/steering
YOLO mini-dial Cone-inference frame rate yolo_fps ← /perception/yolo/fps (Float32)
G-G mini-plot Lateral vs. longitudinal acceleration, in g esp32_accel_lat / esp32_accel_lon ← /esp32/acceleration (Frame, decode_accel) or /zed/zed_node/imu/data (Imu)
Battery mini-dial State of charge dial + pack voltage number battery_soc, battery_voltage ← /battery/state (BatteryState)
Pedals dial Throttle and brake pedal effort, plus commanded brake esp32_throttle ← /esp32/throttle (simulation only — on the real kart kb_coms_micro publishes /esp32/acceleration and nothing publishes /esp32/throttle, so this dial stays blank on hardware), esp32_braking ← /esp32/braking, orin_cmd_brake ← /orin/brake

The steering sign follows the shared dashboard convention: positive radians render to the right.

Mission

Mission selection and autonomous-system control.

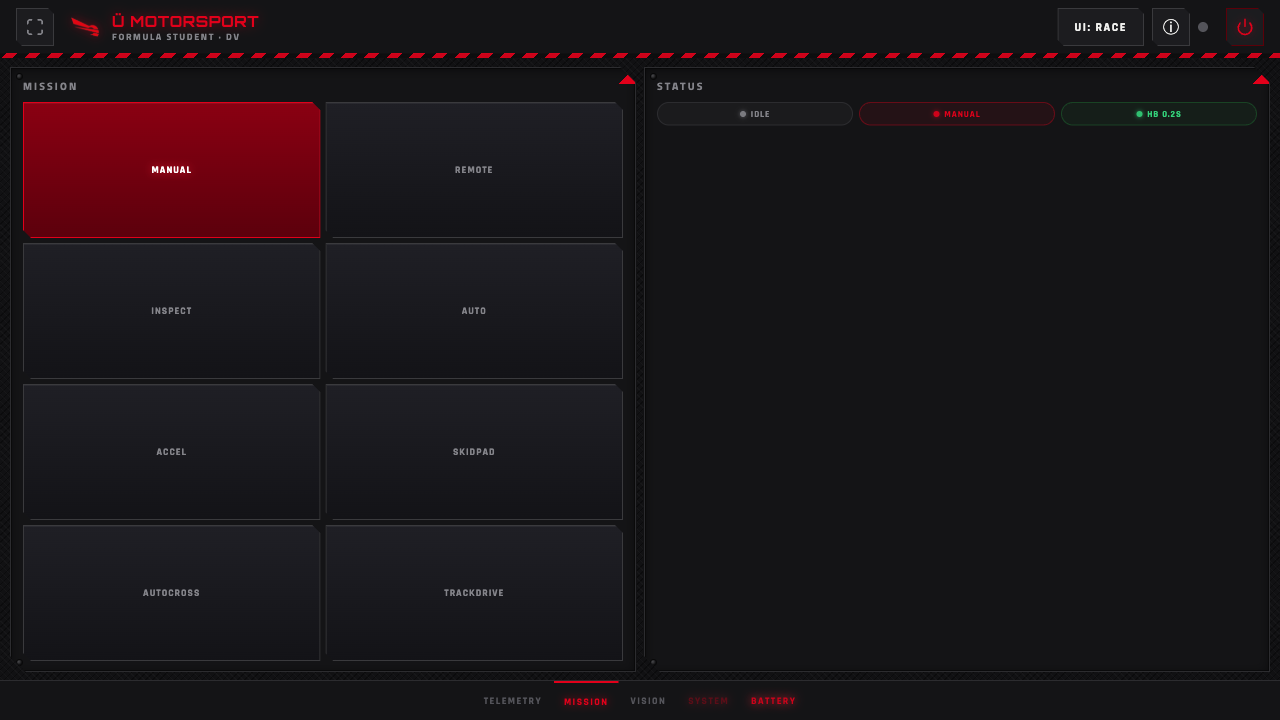

Mission page — mission grid, algorithms, and status controls

Demo-mode data.

Widget Shows Command → ROS topic
Mission grid (8 buttons) Manual, Remote, Inspect, Auto, Accel, Skidpad, Autocross, Trackdrive Selected mission string → /dashboard/mission (String)
Algorithms pane Steering-controller and speed-controller dropdowns (hidden for Manual/Remote) steering → /dashboard/controller_type; speed → /dashboard/speed_controller_type (String)
Status pills State / Mission / Heartbeat, read-only (display only — from the telemetry snapshot)
Controls Start · Stop · EBS · Restart Start/Stop/EBS → /dashboard/state_cmd (String, start/stop/ebs); Restart runs systemctl restart kart-brain on the Orin
Remote joystick Touch joystick, shown only in the Remote mission /kart/cmd_vel_manual (Twist)

The eight mission buttons map to the mission keys in protocol.py's MISSIONS table (manual, remote_control, inspection, autonomous, acceleration, skidpad, autocross, trackdrive). The state machine also accepts ebs_test and throttle_test, which have no button — see the full mission list. The Algorithms pane and the joystick pane appear only for the missions that use them — the grid re-flows so only visible panes share the width.

Only one browser holds the manual-control token at a time; others see who has control and can take it.

Vision

What the perception pipeline sees.

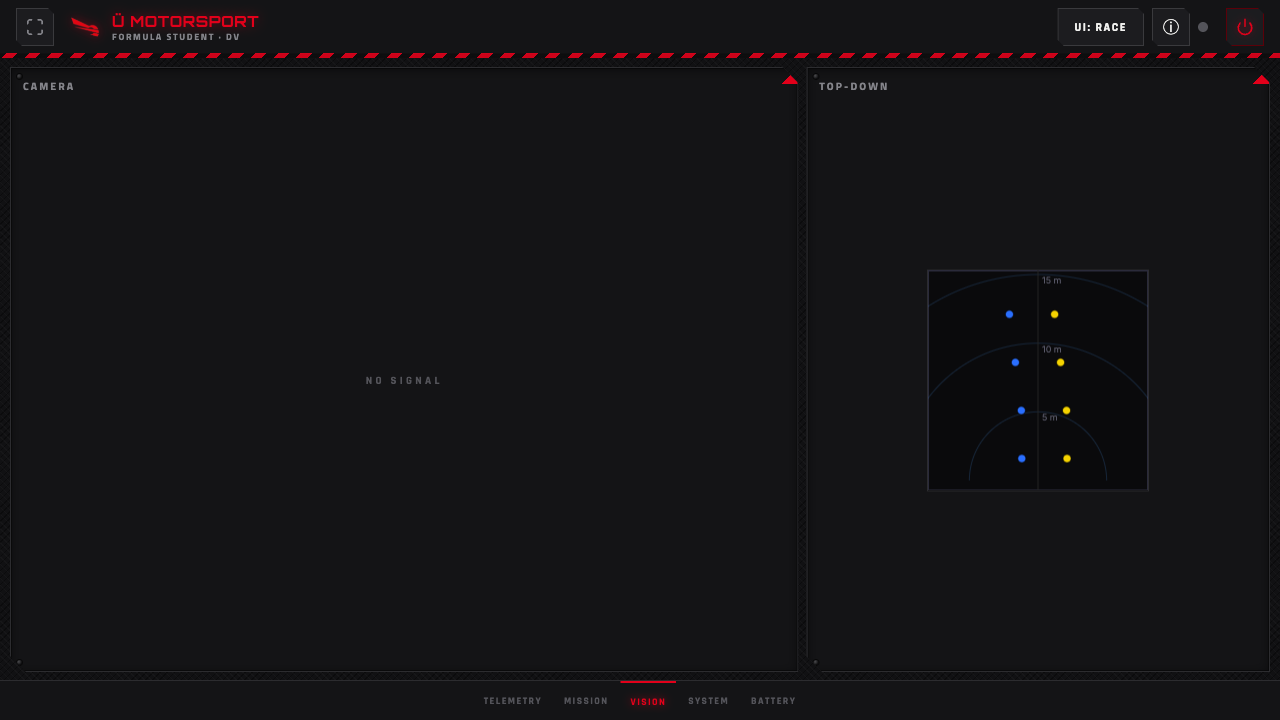

Vision page — live camera HUD and top-down cone map

Demo-mode data.

Widget Shows Data field → ROS topic
Camera HUD Live annotated camera stream; "NO SIGNAL" when absent /perception/hud (Image) → re-encoded to JPEG and streamed as binary WebSocket frames
Top-down cone map Cones plotted from above (x = lateral, z = forward), with 5 / 10 / 15 m range rings cones_3d_ground ← /perception/cones_3d_ground (Detection3DArray)

The top-down map prefers the IMU-corrected topic /perception/cones_3d_ground. If that topic has been silent for more than 1 s (it only runs in the ground-plane validation launch), the node falls back to the raw /perception/cones_3d so the view stays live under the default YOLO pipeline.

System

ESP32 and firmware health, pneumatics, and a debug console.

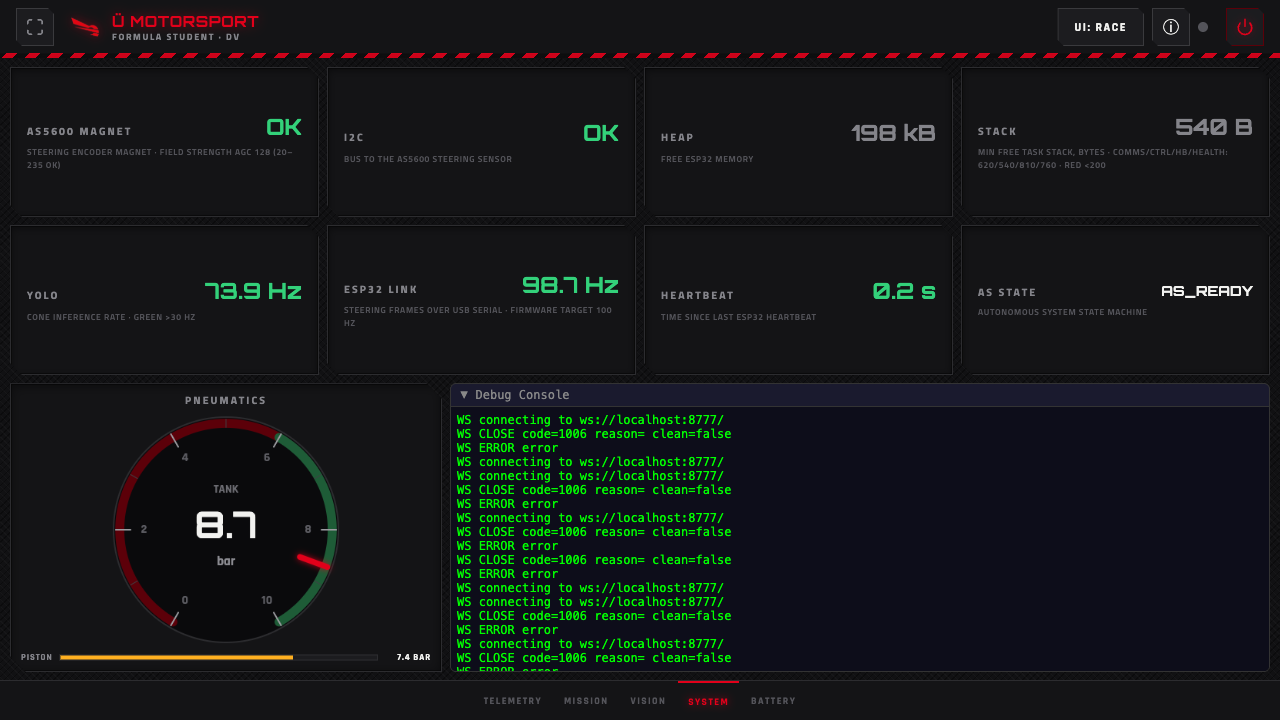

System page — health status cards, pneumatics, and debug console

Demo-mode data.

Card Shows Data field → ROS topic
Magnet + AGC Always empty on this board. These fields come from the retired AS5600 encoder's automatic-gain-control reading. The kart's MT6701 is read as PWM and reports nothing equivalent, so the card stays blank rather than showing a value health_magnet_ok, health_agc ← /esp32/health/flags + /esp32/health/data (Frame, decode_health)
I2C Always empty on this board, same reason — this was the bus status to the AS5600 health_i2c_ok, health_i2c_errors ← /esp32/health
Heap Free ESP32 heap memory health_heap_kb, health_heap_ok ← /esp32/health
Stack Min free task stack (comms/control/heartbeat/health); red < 200 B stack_comms / stack_control / stack_heartbeat / stack_health — not wired yet, see below
YOLO Cone-inference rate; green > 30 Hz yolo_fps ← /perception/yolo/fps
ESP32 link Steering-frame rate over USB serial; firmware target 100 Hz esp_fps ← /esp32/fps (Float32)
Heartbeat Time since the last ESP32 heartbeat esp32_heartbeat_age ← /esp32/heartbeat (Frame)
AS state Autonomous-system state-machine state as_state ← /kart/state (String)
Pneumatics dials Tank pressure dial (6–10 bar safe band) + piston pressure bar pneu_tank_bar, pneu_piston_bar — not wired yet, see below
Debug console Relocated global debug log, expanded (browser-side log)

Any unhealthy item pulses the System tab red.

Battery

The smart-BMS pack view, fed independently of the ESP32 link.

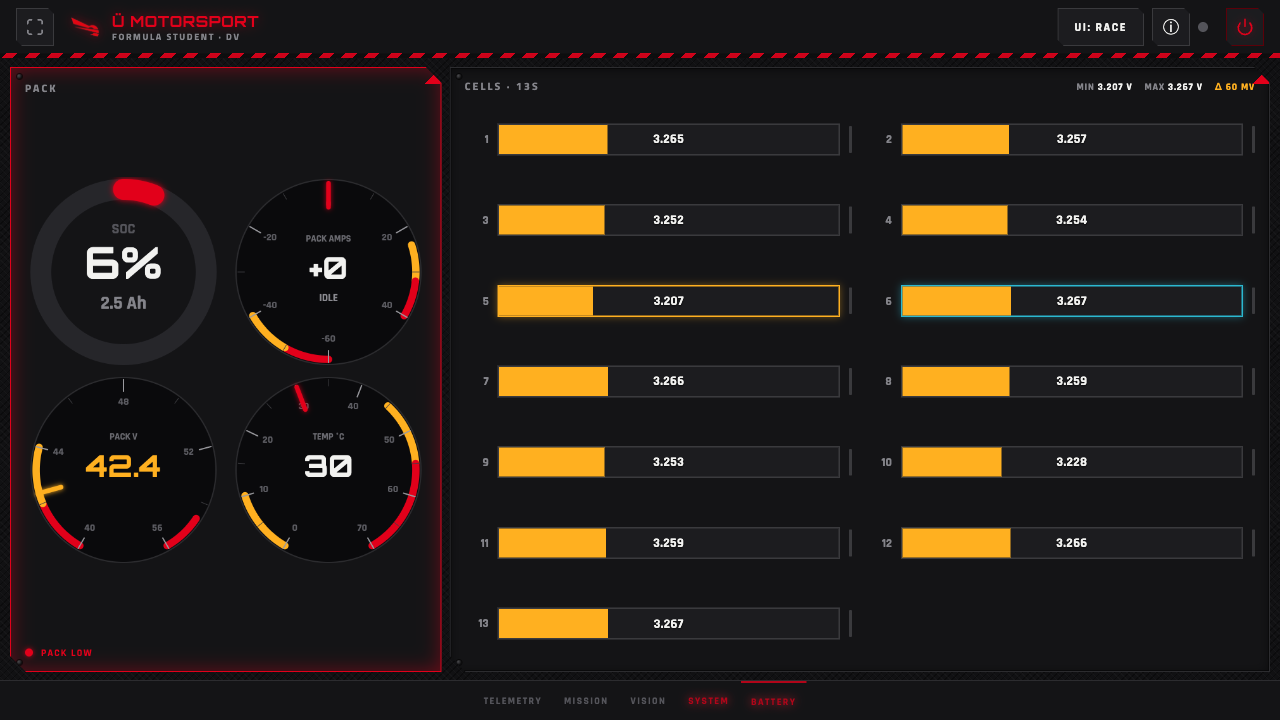

Battery page — SOC ring, current/voltage/temperature gauges, and per-cell strip

Demo-mode data.

Widget Shows Data field → ROS topic
SOC ring State of charge %, with remaining Ah as the sub-line battery_soc, battery_charge ← /battery/state
Pack current gauge Bidirectional current (− discharge / + charge), signed value in the centre battery_current ← /battery/state
Pack voltage gauge Pack voltage battery_voltage ← /battery/state
Temperature gauge Hottest cell temperature battery_temps / battery_temp ← /battery/state
Per-cell strip 13S per-cell millivolts, with min / max / imbalance (Δ) markers battery_cells_mv ← /battery/state

All battery fields come from /battery/state (sensor_msgs/BatteryState), published by the kb_bms node, which reads the JBD/Xiaoxiang smart BMS over Bluetooth Low Energy. The Battery tab pulses red (once pack voltage data is present) when the pack is worth flagging: SOC < 15 %, any cell < 3.0 V, imbalance > 80 mV, temperature ≥ 55 °C, or pack current in its over-current (red) zone.

Known gaps

Two System-page groups are drawn and are fed by demo mode, but have no real ROS subscription in dashboard_node.py yet, so on the real kart they read --:

  • Pneumatics — pneu_tank_bar and pneu_piston_bar (tank + piston dials).
  • Stack — stack_comms / stack_control / stack_heartbeat / stack_health (min free task stack).

The widgets exist and will start displaying as soon as those topics are published and subscribed.
