Hydraulics

  • We are using flexible brake hoses with M10x1.0 female inverted flare connectors

Bleeding / Purging Brake Lines

  • Reference video (purging brake lines): https://youtu.be/dXhEvykyabk?si=LNnOBOaIlJ93uHi6

Brake Pressure Sensor

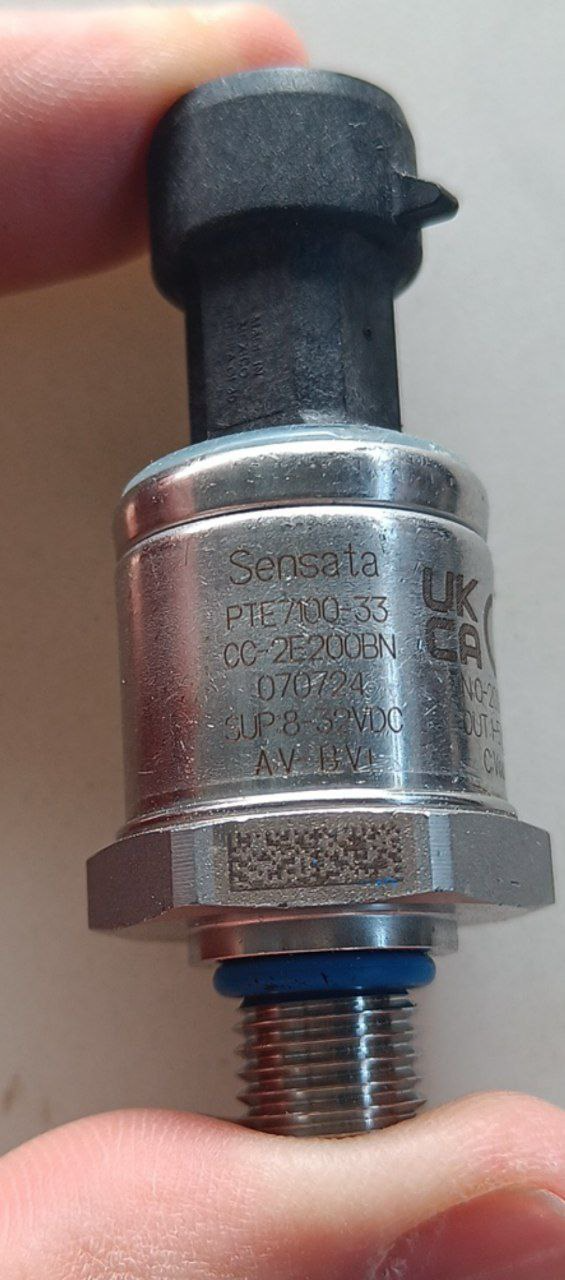

Our pressure sensor is the Sensata PTE7100, code PTE7100-33CC-2E200BN, datasheet here, mouser here.

  • 7/16-20 UNF-2A (MALE) pressure port
  • Packard Metri-Pack 150 connector
  • HNBR o-ring
  • 1-5Vdc/8-32Vdc
  • 0–200 bar pressure range
  • no mating connector or snubber
  • Adapter: To connect the sensor to the brake lines, we use a male M10x1.0 inverted flare to female 7/16-20 UNF adapter

Possible alternative
