Electrical Wiring
Complete electrical wiring diagram for the kart, covering the shutdown circuit, power distribution at multiple voltages, and signal routing between all subsystems.
Wire Color Code
All wiring on the kart follows this color convention:
| Color | Meaning | Hex |
|---|---|---|
| Black | GND (common ground, all systems) | #333 |
| Red | 12 V power | #d32f2f |
| Orange | 5 V power | #e65100 |
| Yellow | 3.3 V power | #f9a825 |
| White / Gray | Unmarked — no voltage meaning | #bbb |
Signal wires (CAN, I2C, analog, PWM) use white/gray unless a specific convention applies to that bus.

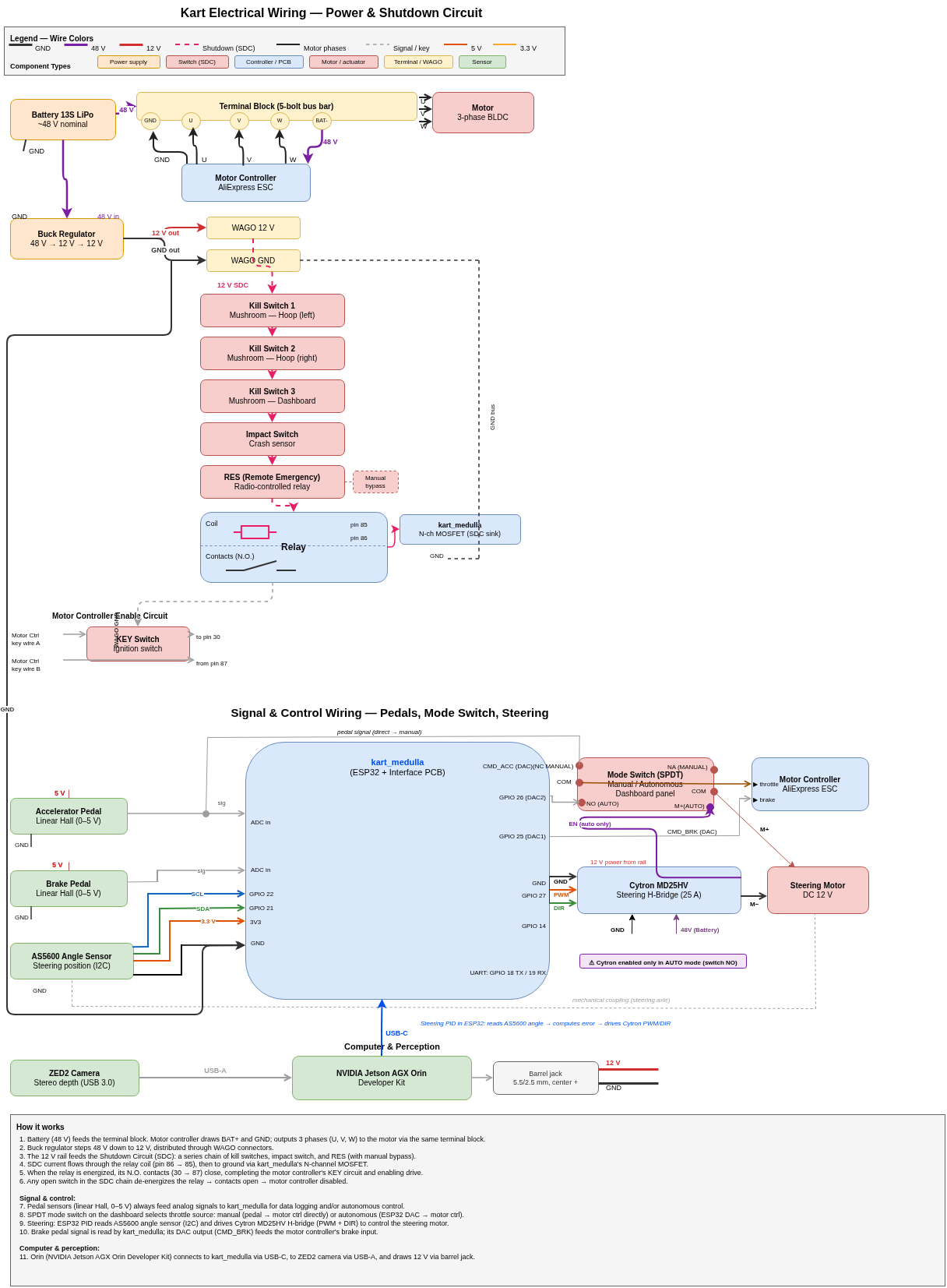

Global Wiring Diagram
Tip: All switches in the shutdown chain are in series — opening any one cuts power to the relay coil, which disables the motor controller.
