ESP32
The ESP32 is a series of low-cost, low-power system on a chip microcontrollers with integrated Wi-Fi and dual-mode Bluetooth. The ESP32 series employs a Tensilica Xtensa LX6 microprocessor in both dual-core and single-core variations and includes built-in antenna switches, RF balun, power amplifier, low-noise receive amplifier, filters, and power management modules.
Key Features
- CPU: Xtensa dual-core (or single-core) 32-bit LX6 microprocessor
- Clock Speed: Up to 240 MHz
- Wi-Fi: 802.11 b/g/n
- Bluetooth: Bluetooth v4.2 BR/EDR and BLE
- Flash Memory: Up to 16 MB
- SRAM: 520 KB
- GPIOs: 34
- ADCs: 18-channel, 12-bit
- DACs: 2-channel, 8-bit
- Communication Interfaces: SPI, I2C, UART, CAN, I2S
Kart Medulla - ESP32-DevKitC V4 Configuration
The ESP32-DevKitC V4 (with ESP32-WROOM-32 module) serves as the "medulla" of the kart, interfacing between the Orin computer, steering angle sensor, and motor controllers.
Firmware Repository: UM-Driverless/kart_medulla

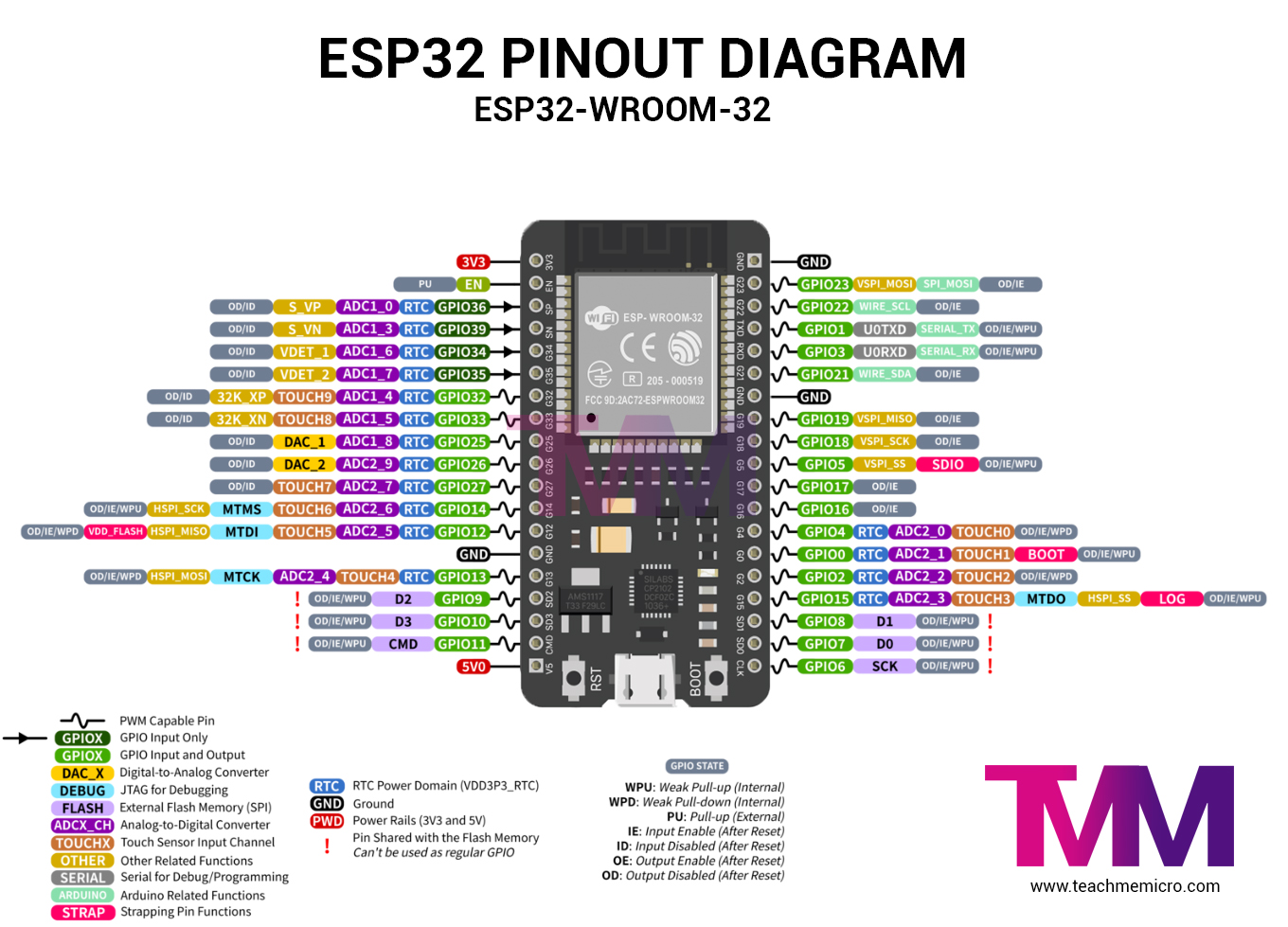

Pin Assignments
Motor Control Outputs
| GPIO Pin | Function | Type | Range | Description |
|---|---|---|---|---|
| GPIO 26 | Throttle | DAC2 | 0-255 | Analog throttle control |
| GPIO 25 | Brake | DAC1 | 0-255 | Analog brake control |
| GPIO 27 | Steering PWM | LEDC | 0-255 | Steering motor PWM |
| GPIO 14 | Steering DIR | Digital | 0/1 | Steering motor direction |
Sensor Interface (AS5600)
| GPIO Pin | Function | Connected To | Description |
|---|---|---|---|
| GPIO 22 | I2C SCL | AS5600 SCL | Clock signal |
| GPIO 21 | I2C SDA | AS5600 SDA | Data signal |
AS5600 Status
The AS5600 magnetic angle sensor remains disabled in firmware until hardware is physically connected.
Auxiliary Pins
| GPIO Pin | Function | Connected To | Description |
|---|---|---|---|
| GPIO 2 | Status LED | Onboard LED | Status indicator |
| GPIO 18 | UART TX | Orin RX | Serial communication to Orin |
| GPIO 19 | UART RX | Orin TX | Serial communication from Orin |
Wiring Connections
ESP32 to AS5600 Angle Sensor
| AS5600 Pin | ESP32 Pin | Wire Color (2025) |
|---|---|---|
| SCL | GPIO 22 | Blue |
| SDA | GPIO 21 | Green |
| VCC | 3.3V | White |
| GND | GND | Grey |
Temporary Color Code
Wire colors are specific to the 2025 version and not official. Always verify connections.
ESP32 to Motor Controllers
Throttle Control
| Motor Driver Pin | ESP32 Pin | Signal Type |
|---|---|---|
| Analog Input | GPIO 26 | DAC2 (0-255) |
| VCC | 5V | Power |
| GND | GND | Ground |
Brake Control
| Motor Driver Pin | ESP32 Pin | Signal Type |
|---|---|---|
| Analog Input | GPIO 25 | DAC1 (0-255) |
| VCC | 5V | Power |
| GND | GND | Ground |
Steering Control
| Steering Driver Pin | ESP32 Pin | Signal Type |
|---|---|---|
| PWM | GPIO 27 | LEDC (0-255) |
| DIR | GPIO 14 | Digital (0/1) |
| VCC | 5V | Power |
| GND | GND | Ground |
ESP32 to Orin (UART Communication)
| Orin Pin | ESP32 Pin | Direction |
|---|---|---|
| RX | GPIO 18 | ESP32 → Orin |
| TX | GPIO 19 | Orin → ESP32 |
| GND | GND | Ground |
UART Configuration
Serial communication enables future integration between the Orin computer and ESP32 for command/telemetry exchange.
